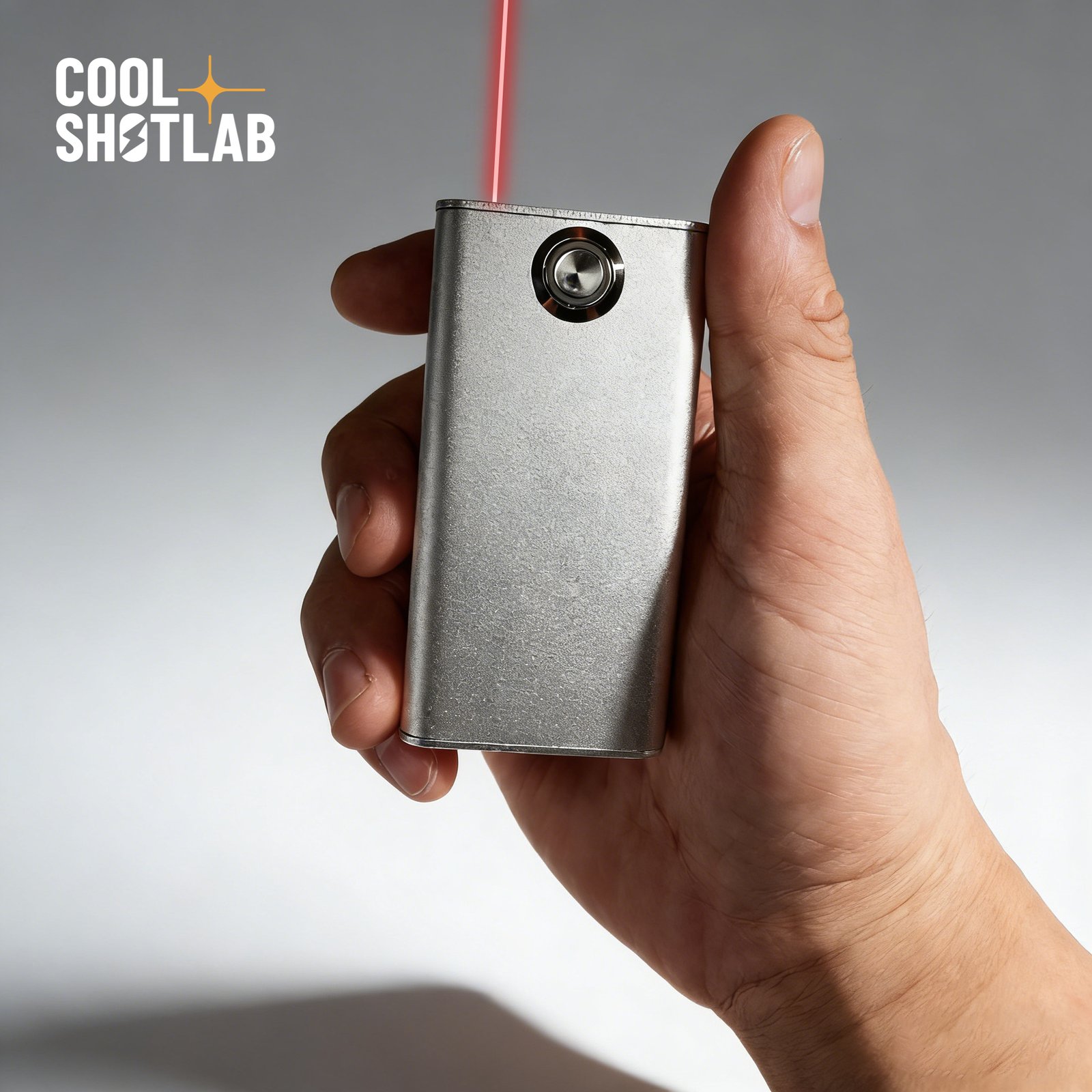

40W Handheld Laser Device Specification Details

Core Configuration Parameters

• Optical Power: 40 Watts
• Laser Brand: IPG (a well-known laser component brand, ensuring stable performance)
• Effective Range: 1 meter for general use; up to 2 meters for black objects
• Thermal Protection: In low-temperature environments, a long press to activate output will trigger an automatic shutdown after approximately 15 seconds to prevent device damage from prolonged operation.

Power Supply & Battery Life

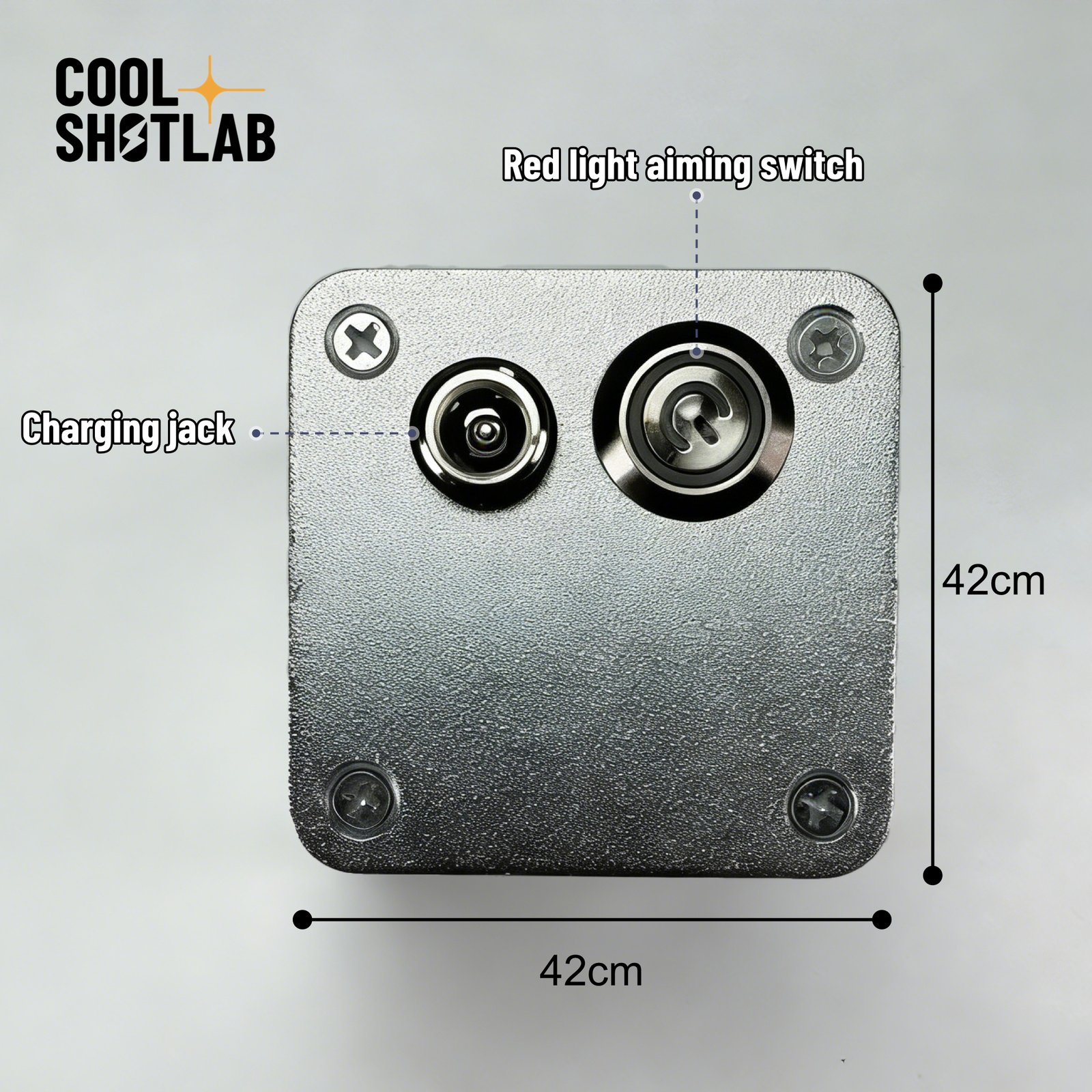

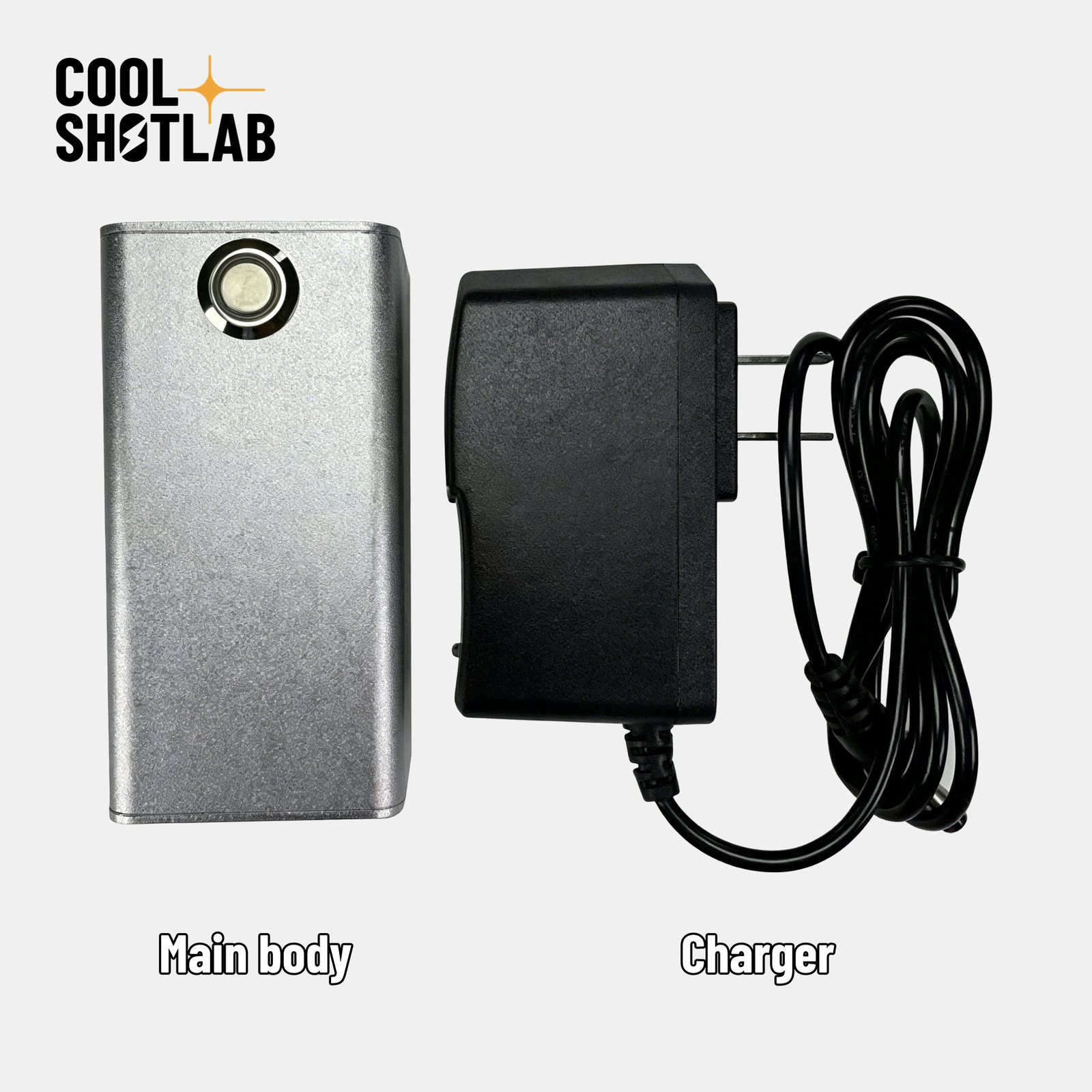

• Charging Specification: DC interface, equipped with a 12.6V 1A dedicated charger
• Built-in Battery: Integrated 3S 750mAh RC battery with a balance protection board (Specifications: 12.6V, 3-series 750mAh 30C power cell, balancing battery life and safety)
• Battery Life: 20-30 minutes of continuous use on a full charge
• Recommended Operation: Adopt cyclic pulse mode with 1-3 second single output to extend device service life

Appearance & Material

• Housing Material: Aluminum alloy, which dissipates heat efficiently through the casing during operation to ensure stable device performance

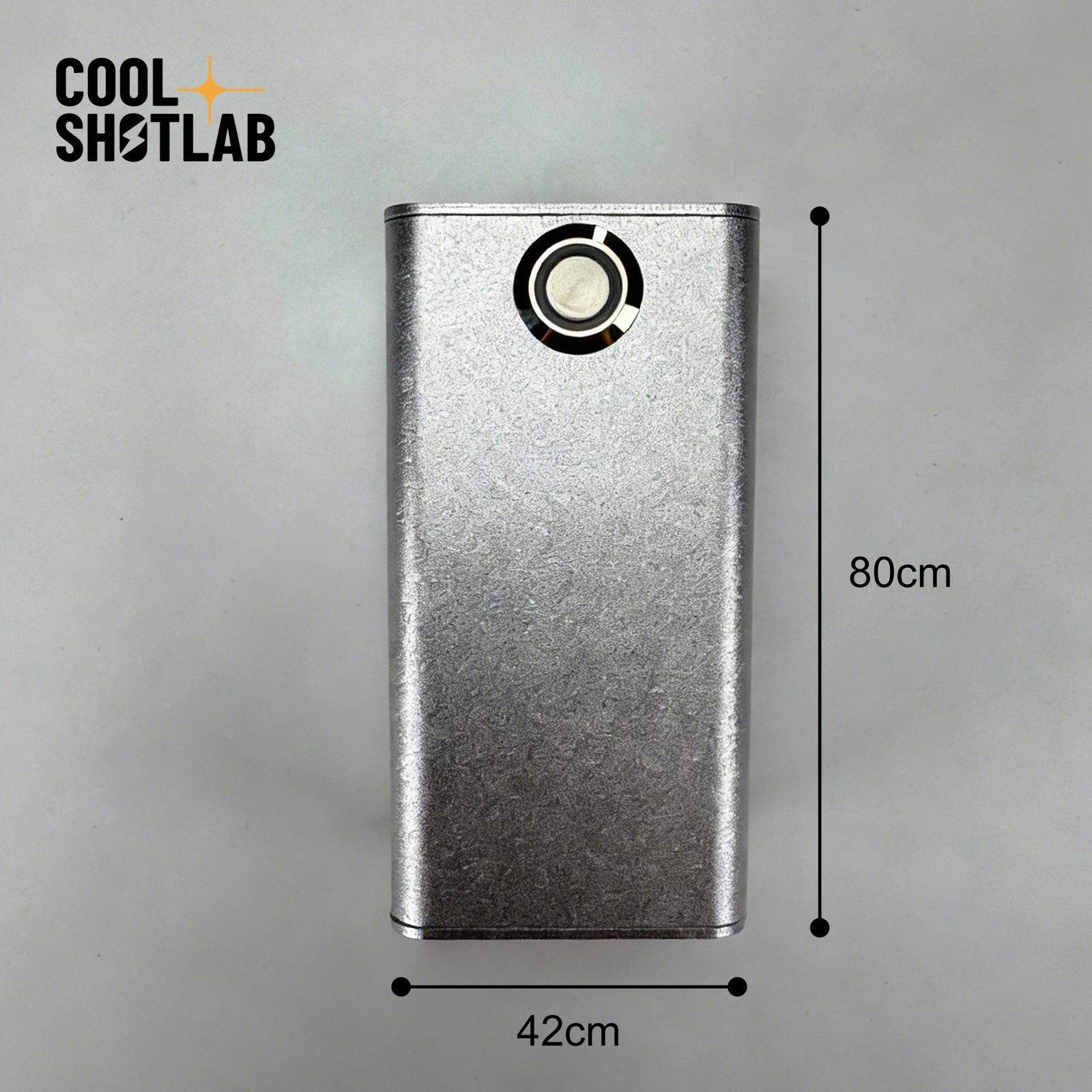

• Product Dimensions: 80mm (L) × 42mm (W) × 42mm (H), compact and easy to hold
• Net Weight: 218g, lightweight design with no obvious burden during long-term holding
